How to Fix 4WD Not Engaging: Switch, Fuse, Axle Checks
Start with the symptom: if the transfer case motor clicks but 4WD never lights up, check power, fuses, and the switch first; if it lights but won’t pull, inspect the front axle disconnect or hub system. Skip that order and you can buy parts you do not need, then still sit in 2WD on snow, mud, or a grade. This guide follows the symptom path through the switch, wiring, transfer case, axle disconnect, hubs, vacuum system, and actuator.
What the symptoms mean
The light pattern points you to the right subsystem. A flashing 4WD light often means the shift request never finished, while a dead indicator often points to lost power, a blown fuse, a bad switch input, or module input loss. If the case shifts but the front wheels still do not pull, move forward to the axle or hub engagement system.

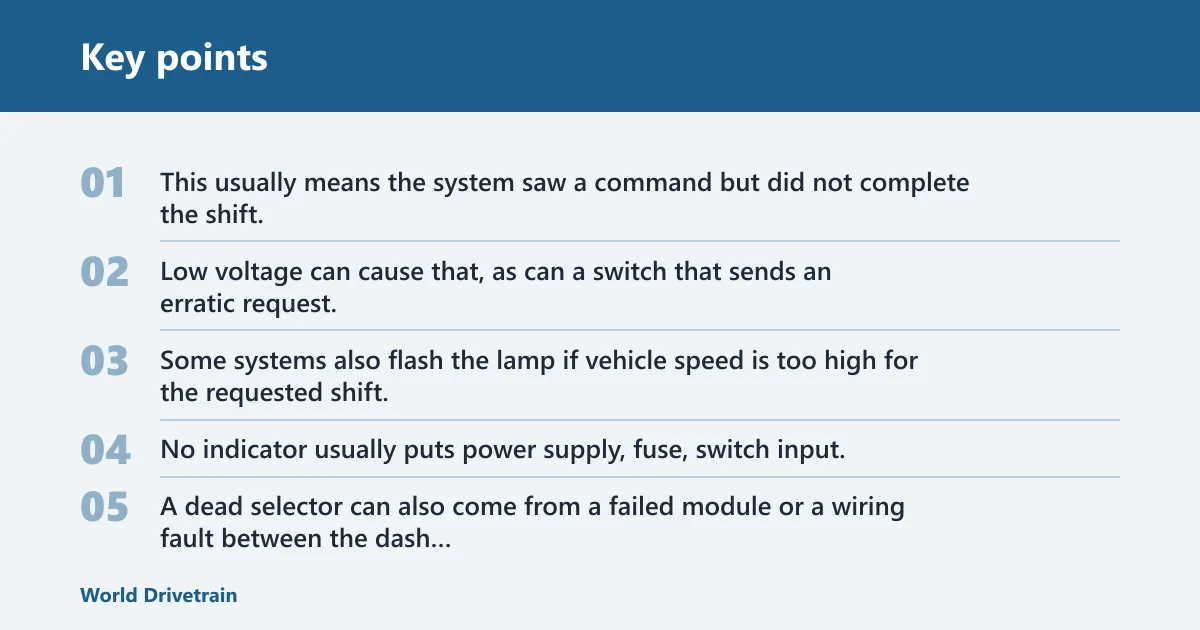

Flashing 4WD light but no engagement
This usually means the system saw a command but did not complete the shift. Low voltage can cause that, as can a switch that sends an erratic request, a transfer case control module fault, or an encoder motor that moves partway and stops. Some systems also flash the lamp if vehicle speed is too high for the requested shift.
No dash light or dead selector
No indicator usually puts power supply, fuse, switch input, or connector damage near the top. A dead selector can also come from a failed module or a wiring fault between the dash switch and the control module. Check the basics before blaming the transfer case itself.
Shift motor noise with no front pull
A click or whirr from the transfer case does not prove the front axle is locked. The encoder motor may be moving, but the axle actuator, vacuum hub system, or disconnect may not be coupling the front wheels. That is a common misdiagnosis point on trucks that “shift” but stay in 2WD.
Intermittent 4WD operation
Intermittent engagement often points to a switch, connector, ground, or position-sensor problem before it points to hard internal damage. Heat, moisture, vibration, and corrosion can make a bad circuit work once and fail the next time. Low voltage can also create false 4WD faults that appear and disappear.
4WD symptom matrix
Use the pattern first, then test the matching subsystem. That keeps you from replacing an encoder motor when the real fault is a bad dash switch or a vacuum leak at the hub system.
| Symptom pattern | Likely subsystem | Next test | Stop doing this | Likely repair outcome |
|---|---|---|---|---|
| Flashing 4WD light, no engagement | Module, switch input, encoder motor, voltage supply | Scan for diagnostic trouble codes and command state; check battery voltage and charging health | Do not assume the transfer case is bad because the lamp flashes | Repair switch circuit, power supply, or motor; clear codes and retest |
| No dash light, no response from selector | Fuse, selector switch, wiring, ground, module | Check fuses, power, grounds, and live switch input data | Do not replace the encoder motor before proving the switch has power | Repair fuse feed, connector damage, or switch failure |
| Motor noise but front wheels do not pull | Front axle actuator, vacuum hub system, disconnect mechanism | Verify axle or hub engagement at the front axle; check vacuum or actuator command | Do not keep replacing transfer case parts if the front axle is not locking | Repair actuator, vacuum pump and solenoid, or hub-related disconnect parts |
| 4WD works only intermittently | Selector switch, connector corrosion, ground, module, position sensor | Watch live data while moving the switch; wiggle-test harnesses where corrosion is visible | Do not ignore intermittent operation until the truck strands you in 2WD | Repair damaged wiring, switch, or module communication fault |
| Burnt odor or metal in fluid | Internal transfer case wear | Inspect fluid level, color, smell, and debris | Do not refill and hope; internal damage may keep spreading | Repair or rebuild the transfer case |
Are the basics right?
Yes, because simple setup errors and power supply faults can mimic a bad 4WD system. Before you blame hardware, confirm the vehicle is in the correct shift position, the battery and charging system are healthy, and the fuses and obvious connectors are intact. Some 4LO engagements require the transmission to be in Neutral.
Shift position and mode requirements
Many systems will not shift correctly if the vehicle is moving too fast, and some require Park or Neutral depending on the mode selected. For 4LO, verify the transmission position first, then follow the manufacturer’s shift procedure exactly. Miss one step and it can look like a failed transfer case motor when the system never accepted the command.
Battery voltage and charging health
Low voltage is a frequent cause of false 4WD faults. Check battery condition and alternator output early, because module logic, motor operation, and switch response all depend on stable voltage. A weak battery can make a healthy system act defective.
Fuses, relays, and obvious connector damage
Start with the fuse box and visible harnesses. Look for blown fuses, loose terminals, water entry, green corrosion, and heat damage at connectors near the transfer case and front axle. A simple power loss can take out the dash selector, module, and shift motor at once.
How do you test the selector switch?
The dash-mounted 4WD selector switch is an input device, and it can fail intermittently or stop sending shift requests altogether. Test it with live scan data or input response before replacing anything else. If the switch command changes on the scan tool, the module is at least seeing the request.
Switch input response
Press each mode button and watch for a corresponding input change on a capable scan tool. A good switch should produce a clear change in state, not a random or delayed response. If the response cuts in and out while the button is held steady, the switch or its wiring is suspect.
What to look for in live data
Look for the requested mode, switch status, module command, and actual transfer case position if the tool supports it. If the dash says 4HI but the module still shows no request, the switch circuit is failing. If the module requests a shift and the motor never responds, move to the motor and power checks.
Picture a selector that works on dry days but fails after rain. That pattern usually points to connector moisture or an internal switch issue, not a bad transfer case gearset. Start at the switch circuit, not the expensive parts.
Transfer case control and motor checks
Diagnostic trouble codes help sort switch, motor, axle, and communication faults before you replace parts. A transfer case scan can reveal communication faults, and the encoder motor, also called the shift motor, may click without shifting if it is binding or if the position sensor is failing.
Diagnostic trouble codes and command states
Pull codes with a capable scan tool, then compare requested mode to actual mode and motor command. Codes that point to lost communication, position sensor mismatch, or motor circuit faults narrow the diagnosis quickly. Without that data, parts swapping gets expensive fast.
Encoder motor noise without shift
A click without movement often means the motor is trying but cannot complete the job. Wear, corrosion, debris, or internal binding can stop the encoder motor even though it still makes noise. A failed position sensor can also make the control module think the shift never finished.
When the transfer case itself is suspect
If the motor commands correctly, the switch input is valid, and the axle engagement system checks out, the transfer case may be the fault. Internal wear, damaged shift forks, or gear issues become more likely when the fluid smells burnt or shows metal debris. That points toward repair or rebuild, not another electrical part.
Can a bad front axle actuator stop 4WD from engaging?
Yes. On many trucks, the transfer case can shift and still not send torque to the front wheels if the front axle actuator or hub system does not lock. Newer trucks may use an electric front axle actuator, while older systems may use a vacuum-actuated disconnect.

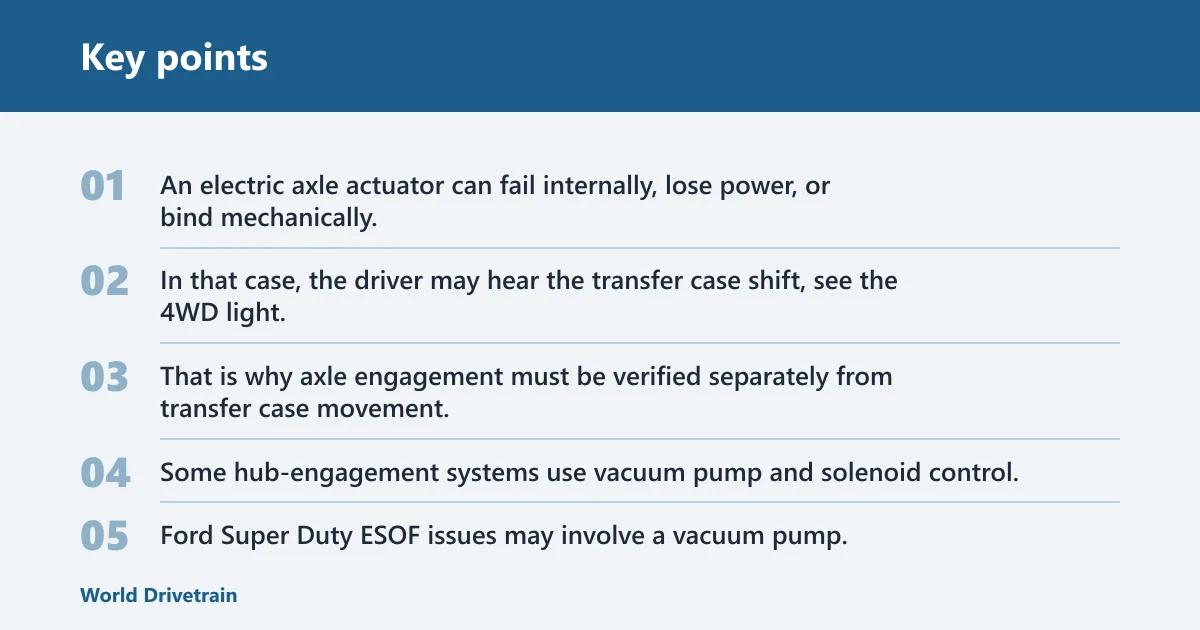

Electric front axle actuators
An electric axle actuator can fail internally, lose power, or bind mechanically. In that case, the driver may hear the transfer case shift, see the 4WD light, and still get no front pull. That is why axle engagement must be verified separately from transfer case movement.
Vacuum pump and solenoid systems
Some hub-engagement systems use vacuum pump and solenoid control, and vacuum leaks can prevent the hubs from locking. Ford Super Duty ESOF issues may involve a vacuum pump, so a “quick fix” can be simple on some cases but still depends on finding the exact leak or failed control part. Check hose condition, solenoid operation, and routing.
Manual hub checks on applicable models
If the truck has manual hubs, verify that both hubs are fully locked before assuming a drivetrain fault. A partially engaged hub can make the system seem inconsistent, especially when one side pulls and the other freewheels. That is not a transfer case failure until the hubs are ruled out.
What causes the transfer case motor to fail?
The encoder motor can fail from wear, corrosion, heat, water intrusion, or a bad position sensor. It can also click without shifting if the geartrain binds or if the module sees a position mismatch. Always confirm power, ground, and command signals before replacing the motor.
Common motor failure clues
Slow movement, repeated clicking, or a shift that stops halfway are strong clues. If the motor gets power but does not move the case, the problem may be inside the motor assembly or the transfer case itself. If power never reaches it, the problem is upstream.
Wiring, grounds, and connectors before parts
Check wiring and connectors before replacing parts. Corrosion at the motor connector, a damaged ground, or chafed insulation can interrupt the shift command or feedback circuit. A scan tool and a visual inspection together are better than guessing.
Suppose a truck flashes the 4WD light only after hitting a pothole. That pattern points more toward a loose connector, broken wire, or ground issue than a worn internal gear. Repair the circuit first, then confirm the mode change on the scan tool.
Look for transfer case fluid problems
Transfer case fluid should be checked when engagement problems persist or when you find signs of internal wear. Low, dirty, or contaminated fluid can affect shift quality. A burnt smell or metal debris suggests internal wear and possible rebuild or replacement.
Fluid level and condition
Inspect the level according to the vehicle’s service procedure, then look at color and contamination. Dark fluid, a burnt odor, or visible particles are not normal warning signs to ignore. If the fluid is low, also look for leaks at seals, case halves, and output areas.
When repair or rebuild is likely
If fluid checks point to internal damage, stop focusing on the switch and motor. Mechanical wear inside the case can cause shifting errors even when the electronics are doing their job. At that point, repair or rebuild is usually more realistic than another sensor or switch.
Frequently asked questions
How do I fix 4WD not engaging?
Start with shift position, voltage, and fuses, then scan for codes and compare requested mode to actual mode. If the transfer case shifts but the truck still does not pull, inspect the front axle actuator or hub system. The correct fix depends on which stage of the process failed first.
How do I fix 4WD switch not working?
Check switch power, ground, connector condition, and live-data response from the dash-mounted selector. If the scan tool never sees the request, the switch or its wiring is the likely fault. If the request appears but no shift follows, move downstream to the module, motor, or axle system.
Why does my 4WD light flash but not engage?
A flashing light usually means the system saw a shift request but did not complete it. Common causes include low voltage, a switch fault, a motor that clicks without shifting, a communication fault, or a front axle engagement problem. Do not treat the flashing lamp as proof of a bad transfer case.
What fuses can cause 4WD to stop working?
Any fuse that feeds the selector switch, control module, encoder motor, or related relay circuit can prevent 4WD operation. Check the vehicle-specific fuse chart, not just one suspect fuse. A blown fuse is often a symptom of a wiring short, not the root cause by itself.
Should I check wiring or connectors before replacing parts?
Yes. Wiring, grounds, and connectors should be checked before expensive parts because corrosion and damaged terminals can mimic a failed switch, motor, or module. Look for looseness, water intrusion, rubbed insulation, and heat damage. These faults are common, easy to miss, and cheaper to fix first.
