How Much Does a Ford F-150 Transmission Rebuild Cost?
A fair Ford F-150 transmission rebuild usually runs about $2,500-$4,500 for a 4R70W, about $3,500-$6,000 for a 6R80, and about $5,500-$9,000 for a 10R80, before torque-converter or valve-body surprises. Bad quotes can hide hard parts, programming, and converter costs, turning a cheap estimate into a repeat repair. This guide breaks out model-year costs and the line items every rebuild quote should include.
4R70W, 6R80, and 10R80 rebuild price ranges by model year
Cost varies by model year, transmission family, region, and repair scope. A 2004-2008 F-150 with a 4R70W or 4R75E usually costs less to rebuild than a 2017-plus truck with a 10R80, and labor, programming, and the converter can move the bill quickly.

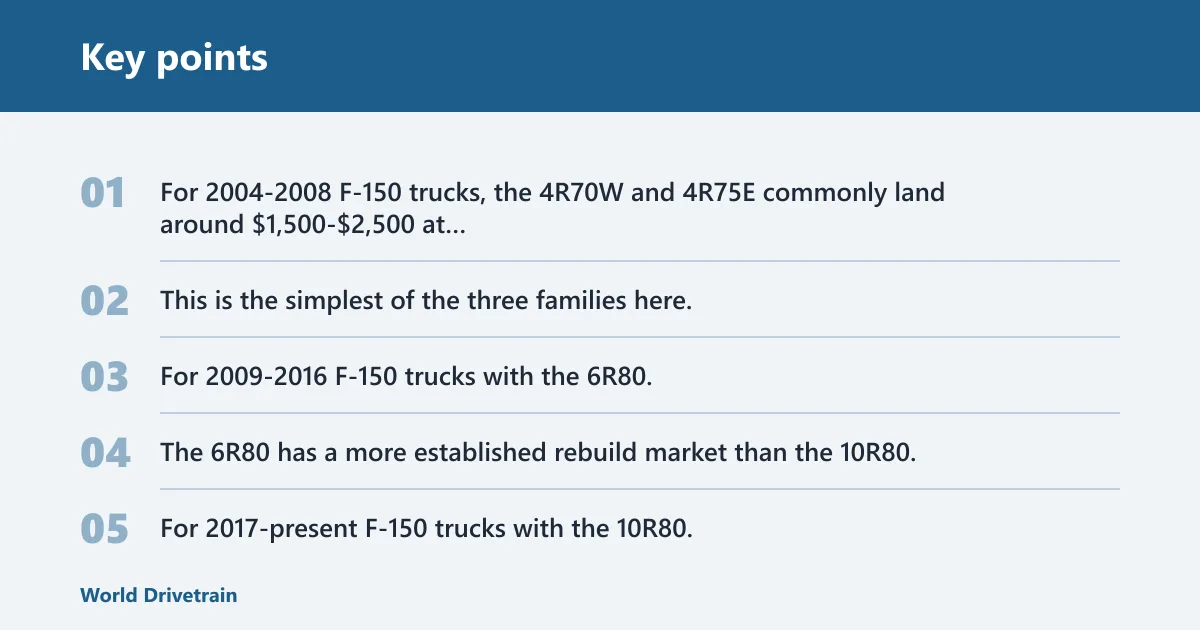

4R70W and 4R75E rebuild range
For 2004-2008 F-150 trucks, the 4R70W and 4R75E commonly land around $1,500-$2,500 at independent shops, with some rebuild listings closer to $1,800-$2,800. This is the simplest of the three families here, so parts and labor usually stay below later-model prices.
6R80 rebuild range
For 2009-2016 F-150 trucks with the 6R80, an independent rebuild commonly falls around $2,500-$4,200. The 6R80 has a more established rebuild market than the 10R80, but it still needs a complete quote that includes converter and fluid contamination cleanup.
10R80 rebuild range
For 2017-present F-150 trucks with the 10R80, a rebuild commonly runs $2,800-$4,500 independent and $4,000-$6,000 dealer for a full rebuild, while other listings place it at $3,800-$5,500. The 10R80 has been a documented source of complaints since launch in 2017, and it usually costs more than a 6R80 because programming and internal wear checks often add time.
Say your 2018 F-150 4×4 has harsh 3-4 shifts and a shudder at light throttle. A quote that only lists “rebuild” is incomplete if it does not separate internal parts, converter replacement, TCM programming, and the cooler flush. That missing detail is how a low number turns into a larger final invoice.
What transmission does your F-150 have?
The transmission family changes the quote more than many owners expect. The exact model year matters, but engine and build date matter too on some trucks.
Model-year guide
For this article, use a simple map: 2004-2008, 4R70W/4R75E; 2009-2016, 6R80; 2017-present, 10R80. The 2009-2010 trucks need extra care because transmission application can vary by engine, so verification by VIN and engine code matters before anyone prices the job.
Why 2009-2010 trucks need engine verification
Those mixed applications can carry different calibration or hardware details, so a blanket quote can miss the correct unit. A shop that asks for the VIN first is doing the right thing. A shop that skips that step may quote the wrong rebuild, then add charges later when the truck is already apart.
How transmission family changes the quote
Older 4R70W/4R75E units are usually cheaper because the parts set is simpler and the labor path is better known. The 6R80 sits in the middle. The 10R80 usually costs more because diagnosis, reprogramming, and internal failure checks can extend the job before the transmission even comes out.

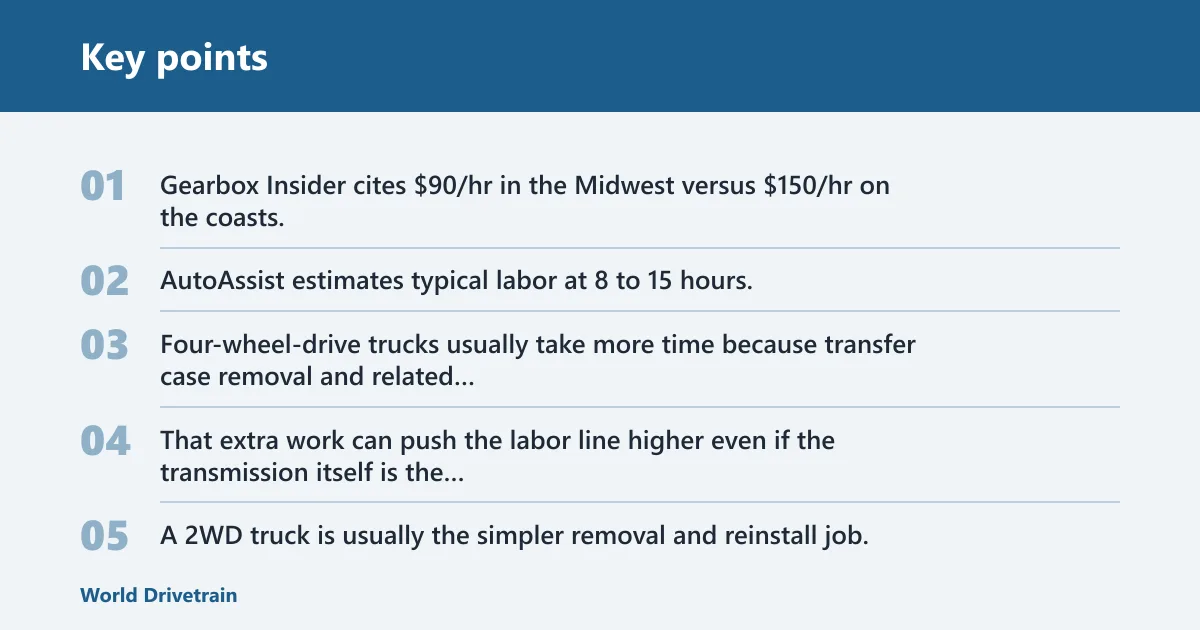

What drives the bill?
Labor rate, labor hours, drivetrain layout, and truck configuration move the price more than many owners expect. Dealer pricing is usually higher than independent shop pricing, and that gap widens when the job needs programming or a converter. F-150 transmission swaps often take about 6-15 hours depending on scope.
Labor hours and regional labor rates
Labor varies by region. Gearbox Insider cites $90/hr in the Midwest versus $150/hr on the coasts, and that spread alone can change a quote by hundreds of dollars. AutoAssist estimates typical labor at 8 to 15 hours, which is why the same rebuild can land in very different price bands.
2WD vs 4WD removal time
Four-wheel-drive trucks usually take more time because transfer case removal and related hardware add steps. That extra work can push the labor line higher even if the transmission itself is the same. A 2WD truck is usually the simpler removal and reinstall job.
Cab and bed configuration effects
Cab and bed layout can affect access, cooling line routing, and underbody working room. Those details do not change the transmission family, but they can change the remove-and-reinstall time. A quote that ignores the truck’s exact configuration is not a quote you can compare fairly.
Picture a 2019 SuperCrew 4×4 with a 10R80 that shudders in 5th and 6th gear. If the estimate is a short line item with no converter, no cooler service, and no programming, the shop may be pricing only a partial teardown. That is not the same repair as a full rebuild.
Rebuild, remanufactured, or used?
A rebuild reuses the original case and many original components, then replaces worn parts. A remanufactured transmission is factory-restored to a defined spec. A used transmission comes from another truck, so its mileage, history, and remaining life are uncertain. Warranty terms usually improve as you move from used to remanufactured.
How each option is built
A rebuild starts with the failed unit and can be tailored to the damage found. A remanufactured unit is built to a standard process and sold as a finished assembly. A used transmission may be the cheapest up front, but it offers the least visibility into internal wear.
Warranty differences
Warranty length matters as much as the headline price. Gearbox Insider says the 10R80 needs a 36-month unlimited-mile warranty when dealer-installed as Ford reman. That is a strong benchmark, and it shows why a very low used-unit quote can be a weak value if the coverage is short or unclear.
When a reman unit makes more sense
A remanufactured transmission can be the better financial choice when the truck is high mileage, the failure is severe, or the quote for rebuilding the original unit comes close to a reman price. A reman can also reduce risk when the core has major hard-part damage or repeated failures.
What extra parts should be included in an F-150 transmission rebuild quote?
A believable estimate should name the torque converter, cooler service, seals and gaskets, fluid, programming if needed, and warranty terms. The quote should also show whether mounts, pan service, and core charge handling are included. If those items are missing, the low price may not be real.
- Ask whether the torque converter is included.
- Confirm the cooler and lines will be flushed or replaced.
- Check whether fluid, filter, seals, and gaskets are part of the price.
- Verify programming, relearn, or TCM work if the truck needs it.
- Ask for warranty length and mileage limits in writing.
- Check whether the quote includes core charge and any mount replacement.
Why the torque converter should be replaced
The torque converter should usually be replaced with a failed transmission because debris and clutch material can stay trapped inside it. It also adds meaningful parts cost and can require transmission removal. Reusing a contaminated converter is a common path to repeat failure.
Why the cooler and lines matter
The transmission cooler and lines must be flushed or replaced after failure because debris contamination can move back into the fresh unit. This is one of the most common omissions on low quotes. If the shop will not address the cooler path, the rebuild is not complete.
When a software update can fix it
A dealer software update can sometimes fix F-150 transmission complaints without a rebuild, especially when the issue is calibration-related rather than mechanical. The smart order is VIN-based TSB check first, then diagnosis, then rebuild pricing. The page says a TCM reflash is dealer-only.
TSB and VIN-based checks
Ford TSBs and software updates matter because some shift complaints trace back to calibration, not broken hard parts. A VIN-based check should come before a rebuild quote when the truck shows shift flare, hesitation, or harsh adaptive behavior without obvious internal failure signs.
10R80 programming and adaptive relearn
The 10R80 often needs TCM programming and an adaptive relearn after repairs. That step is part of the cost and part of the diagnosis path. A quote that skips programming may leave the truck shifting poorly even after the hardware is repaired.
When diagnosis should come before rebuild pricing
If the complaint is mainly shudder, a harsh shift, or a warning light, the shop should check for TSBs and software updates before condemning the unit. If there is metal in the pan, burnt fluid, or repeated slip events, a rebuild or replacement becomes much more likely.
F-150 transmission quote checklist
Use this checklist before you authorize work. The goal is not to find the cheapest estimate. The goal is to find the most complete one, with the fewest hidden additions after the truck is already apart.
| Model year | Transmission family | Expected rebuild range | Converter included | Cooler flush included | Programming included | Warranty length | Red-flag omissions to spot before authorizing repair |
|---|---|---|---|---|---|---|---|
| 2004-2008 | 4R70W / 4R75E | $1,500-$2,500 independent | Should be yes | Should be yes | Usually not needed, verify | Ask for at least 12 months | Missing converter, no cooler service, no seals, no fluid spec, no warranty terms |
| 2009-2010 | 6R80 or engine-specific application | $2,500-$3,800 independent | Should be yes | Should be yes | May be needed, verify VIN | Ask for mileage cap in writing | No VIN check, no engine verification, missing cooler flush, vague labor line |
| 2011-2016 | 6R80 | $2,500-$3,800 independent | Should be yes | Should be yes | Sometimes needed after repairs | Ask for 12-24 months | Converter excluded, no programming note, no adaptive relearn, no core policy |
| 2017-present | 10R80 | $2,800-$4,500 independent; $4,000-$6,000 dealer | Should be yes | Should be yes | Should be yes | Ask for 24-36 months | No TCM programming, no relearn, no cooler service, no warranty mileage, no converter |

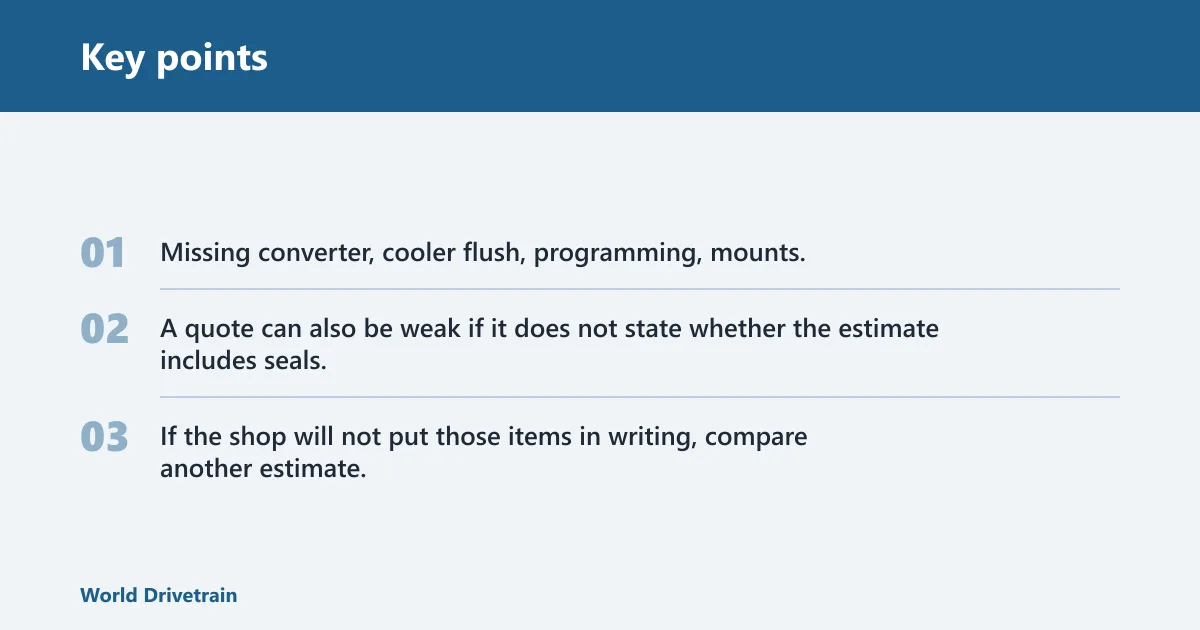

Red-flag omissions
Missing converter, cooler flush, programming, mounts, or warranty details should stop the approval process. A quote can also be weak if it does not state whether the estimate includes seals, gaskets, fluid, and any core charge. If the shop will not put those items in writing, compare another estimate.
How much does it cost to replace a Ford F-150 transmission?
Replacement usually costs more than a simple rebuild when you price a remanufactured unit, converter, labor, and programming together. AutoAssist estimates Ford F-150 transmission replacement at $3,600-$8,400, and that range can rise when the truck needs dealer programming or a more involved 4×4 removal.
How much does it cost to rebuild a Ford F-150 transmission?
Add converter, cooler service, and programming, and the final bill rises fast.
Frequently asked questions
Is a rebuilt Ford F-150 transmission cheaper than a remanufactured one?
Usually yes, but not always by much. A remanufactured Ford transmission is listed at $4,500-$7,500 independent and $5,500-$8,000 dealer, so a rebuild can save money when the core is usable. If the rebuild quote climbs close to reman pricing, reman can be the better value.
Is a 10R80 rebuild more expensive than a 6R80 rebuild?
Yes. The 10R80 usually costs more because diagnosis, programming, and repair scope are more involved.
Can a dealer software update fix F-150 transmission problems without a rebuild?
Sometimes. If the symptom comes from calibration, a TSB or TCM reflash can correct it and save the owner from an unnecessary teardown. If the truck has metal contamination, burnt fluid, or hard internal failure signs, software will not solve the mechanical problem.
When is it better to replace a transmission instead of rebuilding it?
Replacement makes more sense when the case or hard parts are badly damaged, the truck has very high mileage, or the rebuild estimate is too close to reman pricing. A reman unit can bring a cleaner warranty structure and less risk than rebuilding a severely worn core.
What transmission does my Ford F-150 have by model year?
Use the broad map first: 2004-2008 trucks usually have a 4R70W or 4R75E, 2009-2016 trucks usually have a 6R80, and 2017-present trucks have a 10R80. For 2009-2010 trucks, confirm the engine and VIN before you accept any quote.
