Why Is My 4WD Not Working in Reverse?
Why is my 4WD not working in reverse? Most often, the transfer case is not the first fault to blame; if 4WD works in Drive but not in Reverse, check driveline bind, axle or sensor problems, and transmission reverse faults before you replace transfer-case parts. Guessing wrong wastes money, can create unsafe binding on dry pavement, and leaves the real fault untouched. This guide shows the checks that separate a true 4WD engagement fault from drivetrain bind or a reverse transmission problem.
Why reverse fails in 4WD
Reverse should typically work in 4WD. If the truck moves forward but refuses to back out, ask one question first: does the problem show up only in one range, only under load, or in every reverse attempt? That pattern points to a transfer case issue, axle engagement fault, driveline windup, or a transmission reverse problem.

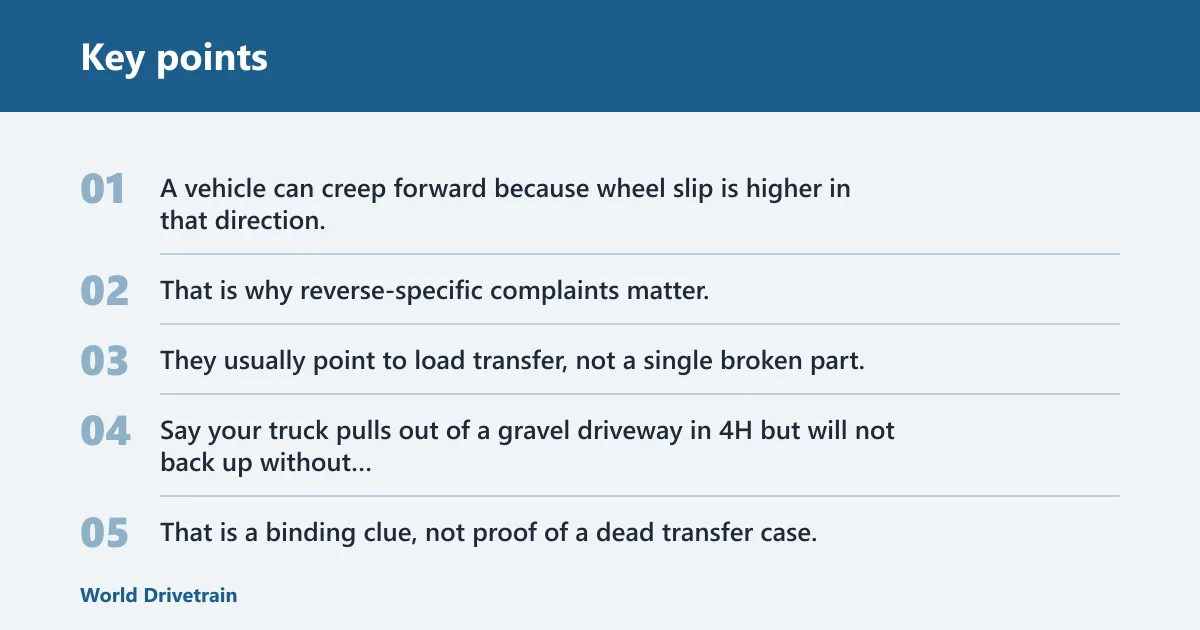

Forward motion versus reverse motion under load
A vehicle can creep forward because wheel slip is higher in that direction, then bind or stall when reverse changes the torque path. That is why reverse-specific complaints matter. They usually point to load transfer, not a single broken part.
Say your truck pulls out of a gravel driveway in 4H but will not back up without chirping the tires and shuddering the steering wheel. That is a binding clue, not proof of a dead transfer case. The same symptom on loose ground points somewhere else than the same symptom on dry concrete.
Confirm the range and selector position
Before you chase parts, confirm the vehicle is actually in 2H, 4H, or 4L. Many apparent reverse failures come from a range that is half engaged, a selector that did not finish its shift, or a dash light that shows command status, not full mechanical engagement. Manual levers and electronic systems fail in different ways.

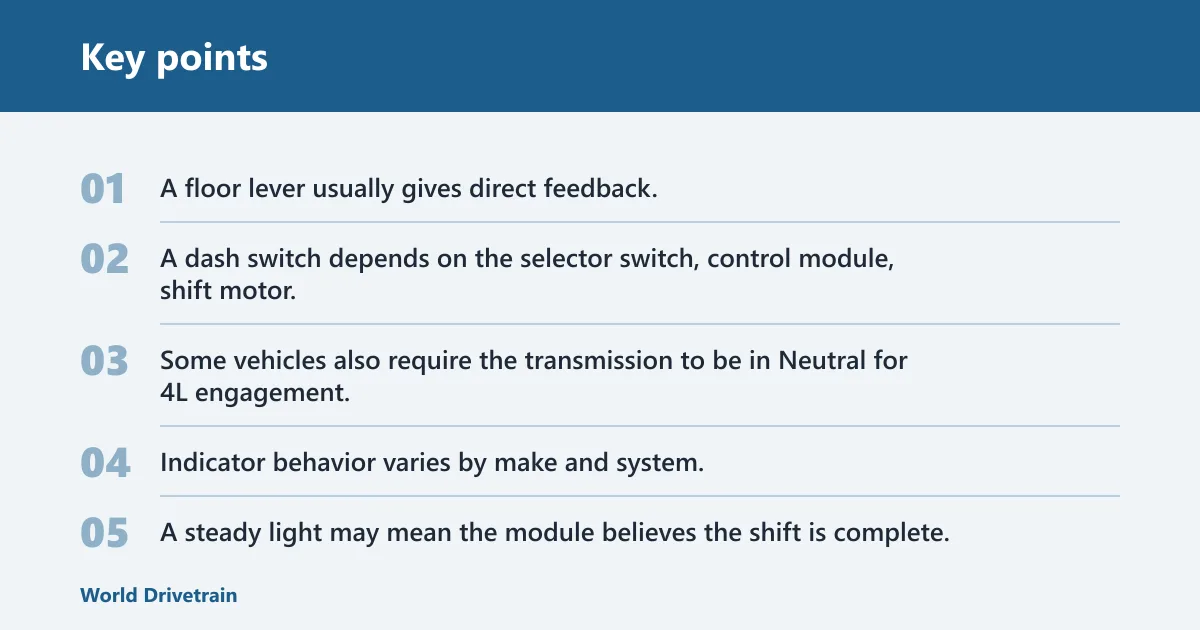

Manual lever versus dash switch behavior
A floor lever usually gives direct feedback, but it can still miss a detent or leave the transfer case between ranges. A dash switch depends on the selector switch, control module, shift motor, and sensors agreeing before the system completes the shift. Some vehicles also require the transmission to be in Neutral for 4L engagement.
What indicator lights can and cannot prove
Indicator behavior varies by make and system. A steady light may mean the module believes the shift is complete, while a flashing light can mean the shift is still in progress, failed, or blocked by another input. Do not use the light alone as proof of full 4WD engagement.
| Checkpoint | What to verify | What the result suggests |
|---|---|---|
| 1. Shifter position | Confirm 2H, 4H, or 4L exactly | A wrong range can mimic a 4WD fault |
| 2. Indicator lights | Check steady, flashing, or no light | Shows command status, not always full engagement |
| 3. 4H/4L confirmation | Verify the selected range matches the intended mode | Rules out low-range confusion |
| 4. Forward vs reverse behavior | Compare both directions in the same range | Separates bind from a true reverse fault |
| 5. Axle or hub engagement | Check front axle disconnect or manual hubs | Points to a front-end engagement issue |
| 6. Binding symptoms | Look for hop, shudder, or steering fight | Suggests driveline windup |
| 7. Scan-tool codes | Read 4WD codes and live data | Shows command, sensor, or actuator faults |
| 8. Reverse in all ranges? | Test whether reverse fails only in one range or in every range | Helps separate transfer case faults from transmission reverse faults |
Reverse fails in all ranges?
If reverse fails in 2H, 4H, and 4L, the transfer case is usually not the first suspect. That pattern leans toward a transmission reverse problem, shift linkage issue, or electronic control fault outside the 4WD system. If the truck goes forward normally in every range but will not move backward, the reverse gear path deserves attention.
Signs of a transmission reverse fault
An automatic transmission that slips, flares, or does nothing in Reverse but still drives forward can have an internal reverse clutch, valve body, or linkage issue. On a manual transmission, a misadjusted shift linkage or internal reverse gear fault can produce the same result. Low transmission fluid can also matter, but many modern vehicles do not have a user-serviceable dipstick.
Shift linkage checks on automatic and manual transmissions
Make sure the selector reaches the Reverse gate fully. A loose cable, worn bushing, or misaligned column or floor shifter can prevent full engagement. If Reverse is incomplete, the symptom may look like a 4WD problem even when the transfer case is fine.
4WD engagement faults
If reverse only fails when 4WD is commanded, the fault may be in the engagement path. That includes the 4WD selector switch, the transfer case shift motor, the control module, or a sensor that tells the module the transfer case is not where it should be. These faults usually show up as delayed shifts, no-shift events, or a light that never settles.
Transfer case shift motor symptoms
An electronic transfer case uses a shift motor or actuator to move into 2H, 4H, or 4L. A weak motor may start late, stall mid-shift, or make repeated clicking or grinding noises. Diagnostic trouble codes often point to actuator travel, position sensor mismatch, or range shift failure.
4WD selector switch and control module checks
The dash switch or floor switch sends a request to the 4WD control module. If the switch signal is intermittent, the module may store a code or ignore the request. The module then checks sensor inputs before it commands the shift motor, so command verification matters as much as the switch itself.

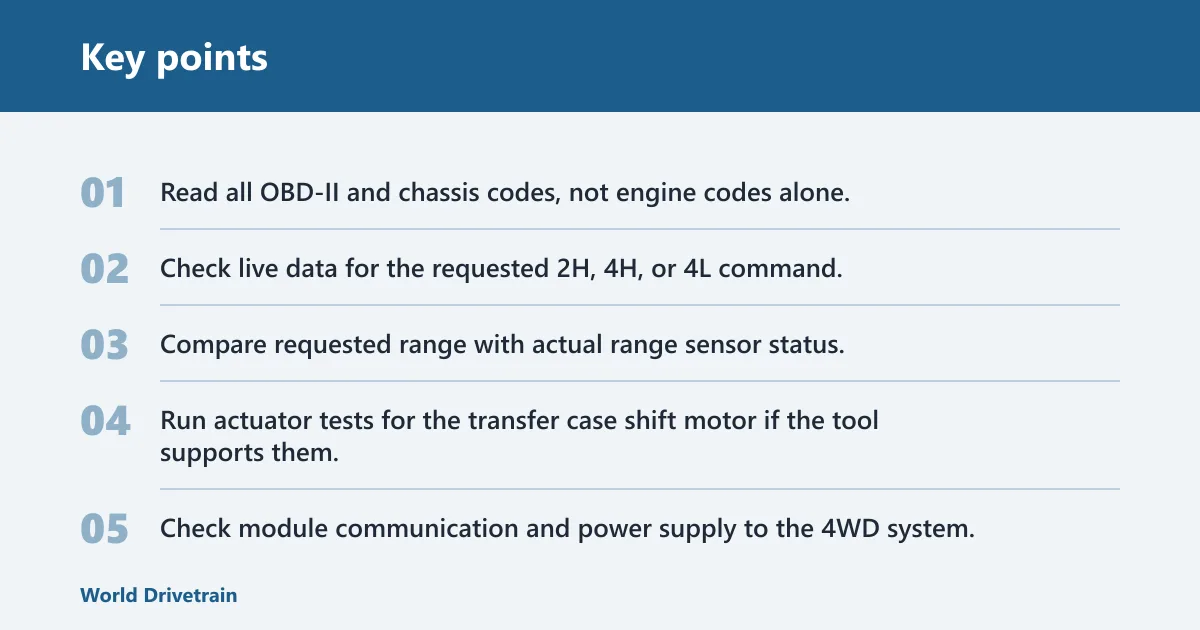

Scan-tool workflow
- Read all OBD-II and chassis codes, not engine codes alone.
- Check live data for the requested 2H, 4H, or 4L command.
- Compare requested range with actual range sensor status.
- Run actuator tests for the transfer case shift motor if the tool supports them.
- Check module communication and power supply to the 4WD system.
Front axle and hub checks
The front axle engagement system can create a reverse complaint even when the transfer case shifts. Vacuum-actuated axle disconnects, electric axle disconnects, and manual hubs all have to engage correctly for full front axle drive. If the front axle does not couple, the truck may feel normal in one direction and weak, jerky, or unwilling in the other.
Vacuum-actuated axle disconnect faults
On vacuum systems, cracked hoses, leaking solenoids, or a weak vacuum source can prevent the front axle from locking in. Common symptoms include delayed engagement, one front wheel pulling, or a no-engagement fault that appears after a shift command. Vacuum leaks are often easiest to hear or feel during command changes.
Electric axle disconnect and hub engagement issues
Electric axle disconnects depend on a motor, position sensor, and wiring. Manual hubs depend on the driver turning them fully to lock. If either side is incomplete, the front axle may not help under reverse load. That can make the truck back out poorly even though the transfer case is in 4WD.
A common first-timer mistake is blaming the transfer case when a vacuum line has split near the axle. The dash light may still come on, but the front axle never truly engages. The repair changes completely once that distinction is clear.
Does binding block reverse?
Yes. Drivetrain windup on high-traction surfaces can make reverse feel blocked, jerky, or hard to maintain. In part-time 4WD, front and rear axles are locked together without a center differential. On dry pavement or another grippy surface, that can force the driveline to fight itself, and reverse can reveal the bind first.
Steering hop, shudder, and tire mismatch clues
Binding often comes with steering hop, tight turns that fight back, or a shudder as the vehicle unloads. Tire-size mismatch can make the problem worse because different rolling circumferences keep the driveline loaded all the time. A mismatched spare left on too long can be enough to trigger symptoms.
Why reverse can feel worse than forward
Reverse changes the direction of torque through the same locked drivetrain. That can release stored windup differently, so the truck may lurch, resist backing, or feel as if Reverse is missing. If the same truck behaves normally on loose ground, binding becomes more likely than a broken reverse gear.
Low-range reverse and load behavior
4L multiplies torque and makes drivetrain faults more obvious. Reverse in low range should still work, but the stronger torque can reveal binding, weak axle engagement, or a transmission issue that was easy to miss in 4H. Low range is useful for backing a trailer, parking on a slope, or controlled recovery work.
Parking, backing up, and recovery situations
In 4L, reverse should move the vehicle slowly and with more force. If the truck stops dead, bangs, or only creeps with heavy throttle, that is not normal behavior. The extra torque can also expose a half-engaged transfer case or a front axle that never locked fully.
When low range exposes an existing fault
If reverse works in 2H but fails in 4L, or works in 4L but not in 4H, the problem is probably not the transmission reverse gear alone. That pattern points to a range-specific engagement fault, a sensor problem, or a bind that shows up only when torque multiplication increases.
4WD reverse diagnostic checklist
Use this checklist to narrow the fault before replacing parts. The goal is to separate command failure, actuator failure, axle engagement problems, driveline bind, and transmission reverse faults. If the result still does not make sense after these checks, a professional diagnosis is the next step.
- Confirm the exact selector position: 2H, 4H, or 4L.
- Watch the indicator light for steady, flashing, or no response.
- Verify whether the transfer case completed the shift.
- Test whether forward and reverse both work in the same range.
- Check whether the failure happens in all ranges or only one.
- Inspect manual hubs, axle disconnects, or vacuum-operated front axle parts.
- Look for binding symptoms on high-traction pavement or with mismatched tires.
- Read codes and live data with a scan tool before replacing hardware.
Suppose a full-size pickup enters 4H on a wet lot, drives forward, then refuses to back out on dry concrete with the steering wheel hopping. That pattern points toward driveline bind or incomplete front axle engagement, not an immediate transmission teardown. The next check should be the engagement path and tire match, not parts swapping.
Frequently asked questions
Does 4WD work in reverse?
Yes, it normally does. A truck in 4H or 4L should reverse unless there is a separate fault, driveline bind, or transmission reverse problem. If forward works but reverse does not, compare behavior in each range before assuming the transfer case is broken.
Can you reverse in 4WD?
Yes, you can reverse in 4WD on most systems. The key question is whether the vehicle is in a true 4WD mode and whether the surface is causing bind. On dry pavement, a part-time system can feel locked up even though reverse itself is not the fault.
Does 4 wheel drive work in reverse?
It should, provided the system is fully engaged and the driveline is not wound up. If reverse only fails in one range, that points to a range-specific issue. If reverse fails in every range, look harder at the transmission, linkage, or a control problem outside the transfer case.
Why won’t my truck go in reverse?
If reverse fails in 2H, 4H, and 4L, the transmission reverse path or shift linkage is more likely than the 4WD system. If reverse fails only in one 4WD range, look for transfer case, axle, or binding issues. The range pattern tells you where to start.
