How to Tell If a Rear Axle Seal Is Leaking
A rear axle seal is leaking if the wetness starts at the outer end of the axle tube near the wheel and a drop forms on the backing plate, brake backing, or inside of the wheel, while the fluid is gear oil with a sulfur smell, not brake fluid or grease. Ignoring it can ruin a wheel bearing, contaminate brakes, and drop differential oil far enough to damage gears. This guide shows a repeatable check for fluid location, residue type, and urgency.
What you’ll need
- Cleaning supplies and shop towels
- Flashlight or inspection light
- Jack and stands or ramps
- Basic hand tools for wheel and brake access
- Safety gloves and eye protection
How do you confirm the leak source?
Clean the rear axle area first, then inspect it again after safe vehicle use. The highest fresh wet point matters more than the lowest drip, because oil can travel along the axle housing, backing plate, or wheel area before it reaches the ground.
- Clean the axle tube, seal area, backing plate, and inside wheel area.
- Inspect again with a light after the vehicle has been used normally and it is safe to do so.
- Find the highest fresh wet point; if it starts where the axle shaft exits the housing, the rear axle seal is the likely source.
Why the clean-and-recheck method works
Dirty residue alone tells you very little. Fresh wetness at the axle housing, especially around the backing plate or flange, is more useful than oil on the wheel rim or floor. A seal leak often hides behind brake parts, so start at the source and work outward.
Say your left rear wheel shows damp brake dust but the axle tube is dry above it. That points away from the seal and toward another rear-wheel source, such as a brake issue or splash from elsewhere. The highest fresh point decides the next step.

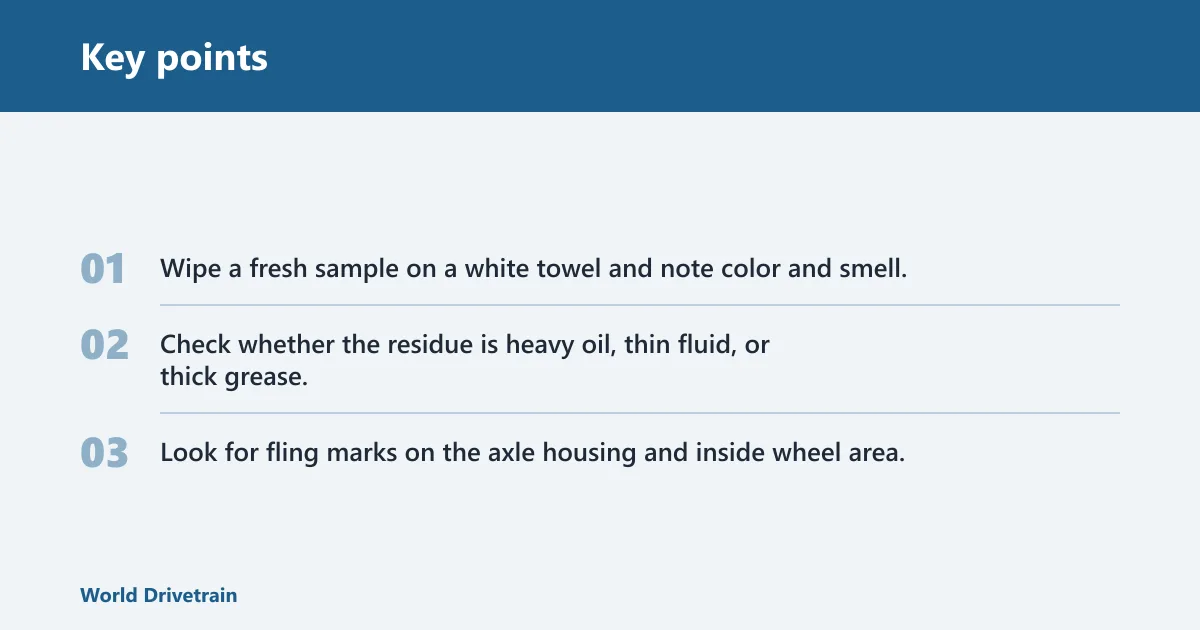

How do you identify axle seal fluid?
Rear axle seal leaks usually leave dark amber to brown gear oil with a sulfur or gear-oil smell. The residue is slick and sticky, not watery. Compare its location and texture with other leaks: brake fluid is thinner, engine oil usually starts higher on the vehicle, and grease is thicker and often flung in a ropey pattern.
- Wipe a fresh sample on a white towel and note color and smell.
- Check whether the residue is heavy oil, thin fluid, or thick grease.
- Look for fling marks on the axle housing and inside wheel area.
How to tell axle seal fluid from other leaks
Location is the fastest clue. Gear oil from a rear axle seal starts at the axle housing where the axle shaft exits, then may appear on the backing plate, inside wheel, or drum or rotor area. Engine oil usually tracks from above. Brake fluid often leaves a cleaner, thinner wet patch near brake parts. Grease is thicker and more localized to a joint or boot.
Picture a wet inner wheel with brown oil dust and a gear smell. That fits differential oil far better than brake fluid. If the wheel is wet but the residue is greasy black and packed around a torn boot, the source is more likely a joint on another axle design, not the rear axle seal.

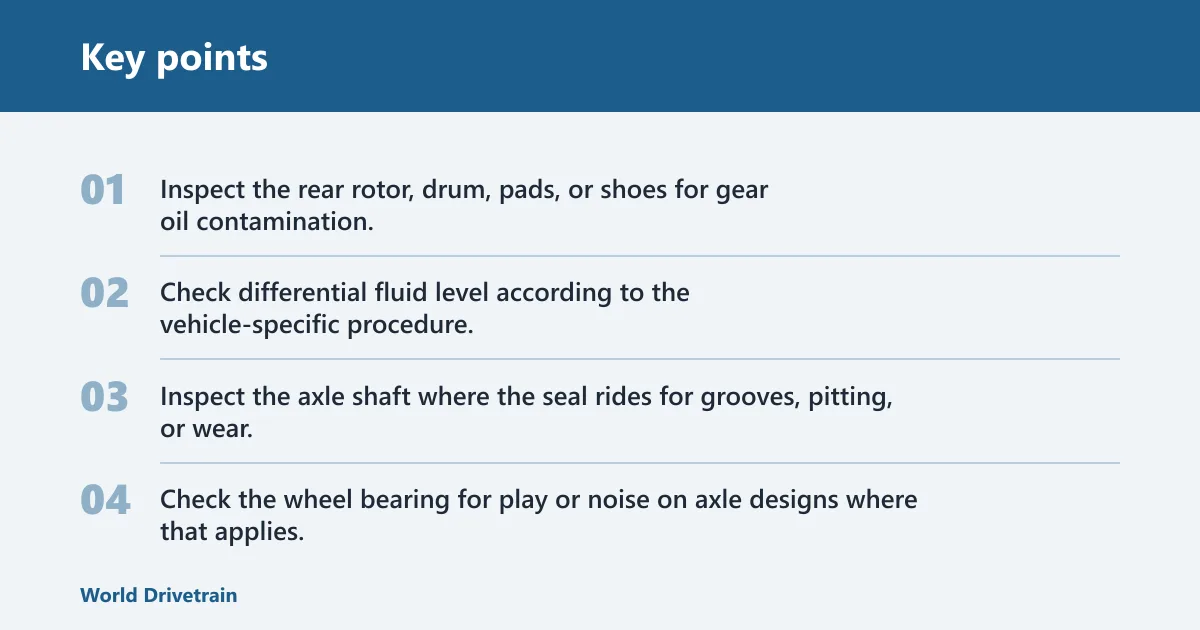

What else should you inspect?
Brake contamination, low differential fluid, shaft wear, and bearing play change the urgency. A seal leak can be more than a wet spot if it reaches the rear rotor, drum, pads, or shoes, or if the axle shaft has a groove that will make a new seal leak again.
- Inspect the rear rotor, drum, pads, or shoes for gear oil contamination.
- Check differential fluid level according to the vehicle-specific procedure, because axle design, vehicle angle, and fluid temperature can affect the reading.
- Inspect the axle shaft where the seal rides for grooves, pitting, or wear.
- Check the wheel bearing for play or noise on axle designs where that applies.
When to check the brake parts
Any oil on pads or shoes matters. It can reduce braking and create noise, and contaminated friction material is normally replaced rather than trusted again. On drum brakes, look inside the drum and on the shoes. On disc brakes, inspect the rotor, pad faces, and caliper bracket area.
A common first-timer mistake is seeing a wet backing plate and assuming the seal is the only issue. If the seal has leaked long enough to wet the friction material, replacement of contaminated brake parts may be needed along with the seal repair.
Why low differential fluid changes the diagnosis
Low gear oil turns a simple seep into a severity problem. Most manufacturers specify the correct fill level at the fill plug or level point, and the fluid should sit at that level unless the design calls for another check method. Because procedures vary by axle design, checking at the wrong temperature, angle, or fill point can mislead diagnosis. If the level is low, the leak is active enough to matter.
Suppose a rear axle seal leaves the housing damp but the fluid level is still at spec. That is usually less urgent than a leak that leaves the housing wet and the differential low. The second case needs repair planning before more driving.
Rear axle leak diagnosis checklist
| Check | Yes | No | Action |
|---|---|---|---|
| Wetness starts at the axle housing where the shaft exits? | Likely seal source | Look elsewhere | Clean, recheck, and inspect brakes |
| Fluid is dark amber to brown and smells like gear oil? | Matches differential oil | Does not match | Compare to brake fluid, engine oil, or grease |
| Rear brakes are contaminated? | Repair risk is higher | Lower immediate risk | Do not keep driving long distances |
| Differential fluid level is low? | Urgent service needed | Monitor and plan repair | Top up only if the vehicle manual allows access and level checking |
| Axle shaft has grooves or seal wear marks? | Repeat leak risk | Seal may be the only fault | Replace the shaft, sleeve, or repair surface as needed |
Can you drive with a leaking rear axle seal?
A short drive may be acceptable if the leak is only a light seep, the fluid level is at spec, and the brakes are dry. Stop driving if the differential is low, the leak is running onto brake parts, or there is a bearing noise or play. Those conditions raise the risk fast.
- Check the fluid level first.
- Inspect the brake side for contamination.
- If the leak is active, schedule repair before longer travel.
When to stop and schedule repair
If gear oil reaches pads or shoes, the vehicle should not keep normal road use until the contamination is corrected. If you hear humming, growling, or clunking from the axle area, inspect the bearing and shaft before more driving. Seal replacement alone will not fix a worn shaft or damaged housing bore.

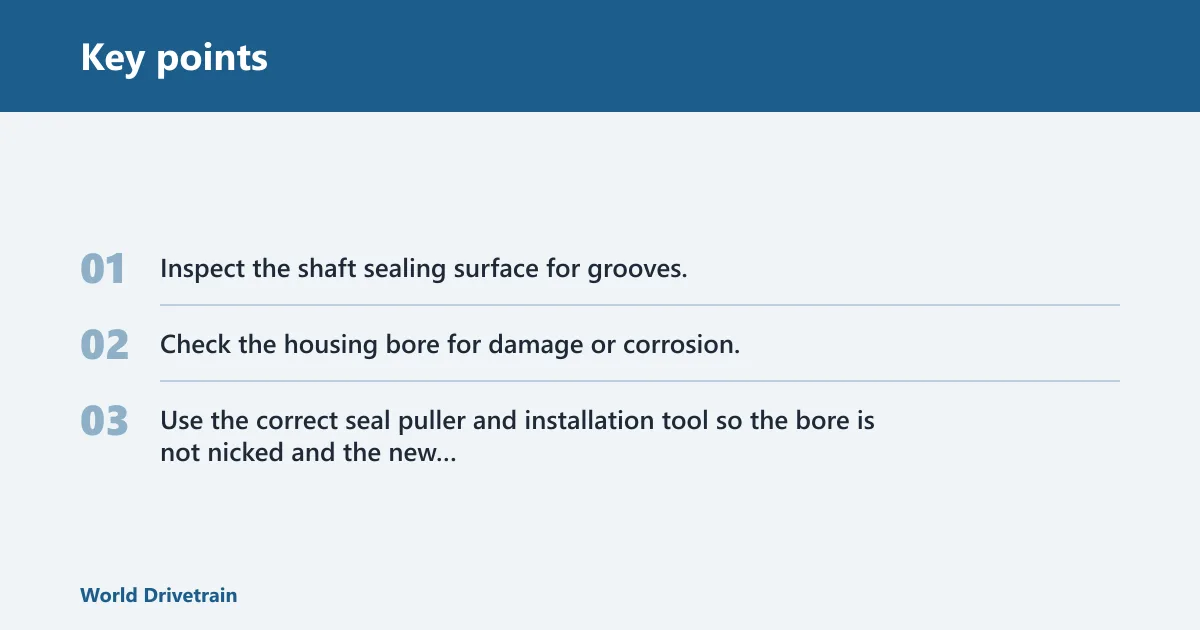

What causes rear axle seals to leak?
Common causes include seal hardening with age, normal wear, axle shaft damage where the seal rides, and improper installation. A nicked bore, an off-center seal, or a reused worn surface can create a repeat leak even after new parts go in.
- Inspect the shaft sealing surface for grooves.
- Check the housing bore for damage or corrosion.
- Use the correct seal puller and installation tool so the bore is not nicked and the new seal seats squarely.
What to do if the leak returns
If a new seal leaks again quickly, look past the seal itself. Shaft wear, housing damage, and bearing play can all keep the lip from sealing. On some axle designs, the bearing and seal are serviced together, so the repair plan should match the axle layout rather than the leak alone.
Common mistakes
- Confusing axle oil with brake fluid, engine oil, or grease. Check the highest fresh wet point and the smell before calling it a seal leak.
- Replacing the seal without checking shaft wear or housing damage. A grooved shaft can ruin the new seal fast.
- Ignoring noise, play, or low fluid after the leak is found. Those signs change the repair from routine to urgent.
- Missing brake contamination behind the rotor or drum. Wet friction parts should be treated as a safety issue.
Frequently asked questions
How to tell if a rear axle seal is leaking
Look for fresh wetness that starts where the axle shaft exits the differential housing, then check the backing plate, drum or rotor area, and inside wheel. A gear-oil smell and dark amber to brown residue support the diagnosis. Clean, inspect again after safe vehicle use, and recheck for the highest fresh wet point.
What are the symptoms of a rear axle seal leak?
Common symptoms are wetness around the rear wheel area, oily residue on the backing plate, gear-oil smell, and sometimes brake noise if the leak has reached pads or shoes. Low differential fluid and axle bearing noise can follow if the leak is active long enough.
How serious is a leaking axle seal?
It ranges from minor seepage to a safety problem. A slow leak may just need planned repair, but low gear oil can damage the differential and brake contamination can reduce stopping ability. Severity depends on leak rate, fluid level drop, and whether the brakes or bearing are affected.
When should a rear axle seal be replaced?
Replace it when the leak is fresh and coming from the axle-to-housing area, when gear oil is reaching brake parts, or when the differential fluid level has dropped. If the axle shaft is grooved, replace or repair the wear surface too, or the new seal may not last.
